Difference Between Hoist and Crane

The main difference between a hoist and a crane is movement.

A hoist lifts and lowers a load. A crane moves and positions the load across a work area.

The hoist handles vertical lifting. The crane provides the structure, travel path and coverage. In many industrial settings, the two work together as one lifting system.

In this guide, we explain what hoists and cranes do, how they work together, when a hoist may be enough, and when a crane is the better option. We also cover common equipment types, key selection factors and mistakes to avoid before choosing a lifting system.

Hoist vs Crane: The Quick Answer

A hoist is the part of a lifting system that raises and lowers the load. It usually handles vertical movement from a fixed point, trolley, monorail or crane structure.

A crane gives the load somewhere to go. It provides the structure and travel path needed to move the load across a work area, whether that is along a bridge, gantry, jib arm or workstation crane system.

This is why the two terms often overlap. A hoist is commonly fitted to a crane, with each part doing a different job. The hoist performs the lift. The crane provides the reach, movement and placement control.

So the key question is simple: does the load only need to move up and down, or does it need to travel across the work area as well?

What Is a Hoist?

A hoist is the lifting unit that raises and lowers a load.

Most industrial hoists use chain or wire rope to control vertical movement. The hoist may be fixed in one place, mounted to a trolley, fitted to a monorail or installed as part of a crane system.

The hoist does not usually provide wide area coverage by itself. Its job is to lift the load, hold it under control and lower it into position.

Common hoist types include:

Each hoist type suits a different application. The right option depends on load weight, lift height, duty cycle, headroom and working conditions.

An electric chain hoist often suits compact lifting tasks. An electric wire rope hoist can suit higher capacities, longer lift heights or frequent operation. A monorail hoist can suit straight-line movement where the load follows a fixed path.

What Is a Crane?

A crane is a complete lifting and handling system.

It usually includes a structure, runway, bridge, arm, gantry or support frame, along with a hoist and controls. The crane gives the load its movement path. The hoist provides the lifting action.

A crane suits work areas where loads need to move beyond one fixed lifting point. Depending on the design, a crane can move loads vertically, horizontally or through a defined work zone.

Common crane types include:

Each crane type suits a different site layout.

A bridge crane can cover a large bay. A gantry crane can support lifting where a fixed overhead runway may not suit the building. A jib crane can service a smaller work zone. A workstation crane can support repeated lifting across production, assembly or maintenance areas.

How Hoists and Cranes Work Together

Many lifting systems use a hoist and a crane together.

The hoist lifts the load. The crane moves the hoist and load along the required travel path. This gives the operator control over lifting, travel and placement.

For example, a maintenance team may need to lift a motor, move it across a bay and lower it onto a stand. The hoist controls the lift. The crane controls the travel.

A production area may use the same principle to move steel, parts, tools or equipment between workstations. A warehouse may use a crane and hoist system to reduce double handling and improve load control.

Without the hoist, the crane cannot lift the load. Without the crane, the hoist may have limited reach.

This is why equipment selection should start with the full handling task, not just the lifting capacity.

If you need help deciding which lifting system is needed for your worksite and task, reach out the JDN Monocrane team today, and we can point you in the right direction.

When Is a Hoist Enough?

A hoist may be enough when the task only needs vertical lifting in one location.

This can suit fixed maintenance points, smaller work areas and simple lifting tasks where the load does not need to travel across the site.

A hoist may suit your site if:

The lift point stays in one location
The load only moves up and down
The lift path is clear
Space is limited
The task does not justify a larger crane structure
A trolley or monorail gives enough movement

A hoist-only setup can reduce cost and keep the lifting system simple. It can also suit sites where the building does not support a larger crane installation.

The main risk is choosing a hoist when the load still needs to move after lifting. If operators need to drag, push, forklift or manually shift the load into place, a hoist alone may not solve the handling problem.

When Do You Need a Crane?

A crane is usually the better choice when the load needs reach, travel and controlled placement.

This often applies in factories, warehouses, fabrication areas, workshops, service bays and production facilities.

You may need a crane if:

Loads move across a bay
Several work areas need lifting support
The system handles repeated lifts each day
Operators need better placement control
The load is heavy, bulky or awkward
Forklift movement creates delays or safety concerns
The lifting task affects production speed or downtime

A crane can improve workflow because it gives the load a clear movement path. It can also reduce double-handling and help operators move materials with more control.

For heavier loads, longer spans or frequent use, the crane structure becomes just as important as the hoist.

Which Crane or Hoist Type Fits Your Site?

The right option depends on how the load moves.

Fixed Hoist: A fixed hoist suits tasks where the load only needs to move up and down in one place. This can work for maintenance points, machinery access or simple lifting areas.
Monorail Hoist: A monorail hoist suits tasks where the load needs to travel along one fixed line. This can suit production lines or repeated movement between two points.
Jib Crane: A jib crane suits a local work area, machine, loading point or workstation. It gives the operator a defined lifting radius without covering a full bay.
Workstation Crane: A workstation crane suits repeated lifting across a defined area. It can support production, assembly, packing, repair or maintenance tasks.
Bridge Crane: A bridge crane suits larger bays where loads need to move across a wider area. It is common in workshops, manufacturing spaces and heavy handling environments.

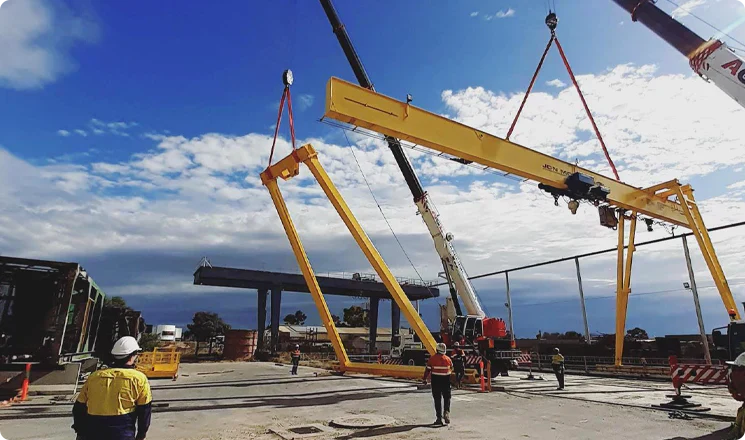

Gantry Crane: A gantry crane can suit sites where a fixed overhead runway is not practical. It can provide lifting coverage without relying on the same building structure as an overhead bridge crane.
Custom Crane System: A custom crane system may be needed when the load, span, duty cycle, headroom or site layout does not suit a standard option.

How to Choose Between a Hoist and Crane

The right system starts with the job.

Before choosing equipment, define the load and map the movement path.

Ask these questions:

What is the heaviest load you need to lift?
How often will the system be used?
Does the load only move vertically?
Does the load need horizontal travel?
How far does the load need to move?
What lifting height is required?
What headroom is available?
Are there columns, doors, machines or other obstacles?
Will the system connect to an existing structure?
Who will service and maintain the equipment over time?

Capacity matters, but it is only one part of the decision.

A lifting system also needs to suit the duty cycle, site layout, controls, access, inspection requirements and long-term maintenance needs. A system that looks right on paper may still slow the job down if the movement path is wrong.

JDN Monocrane can assess the full application and match the equipment to the way your site operates. Call our experienced team today.

Common Mistakes When Comparing Hoists and Cranes

Mistake 1: Using the terms as if they mean the same thing

A hoist and crane are different. The hoist lifts. The crane moves and positions.

Mistake 2: Choosing by capacity only

A hoist may be rated for the load, but that does not mean it can move the load where it needs to go.

Mistake 3: Ignoring headroom

Poor headroom can reduce hook height and limit usable lifting space.

Mistake 4: Forgetting duty cycle

A light-use lifting point has different requirements from a high-cycle production area.

Mistake 5: Ignoring servicing and repairs

Cranes and hoists need inspection, servicing and maintenance over time. Choosing equipment with long-term support in mind can reduce downtime and make repairs easier to manage.

Need Help Choosing the Right Lifting System?

JDN Monocrane designs, manufactures, installs, services and supports crane and hoist systems across Australia.

Our team can help you compare hoists, cranes and complete lifting systems based on your load requirements, site layout and operating needs. We support standard and custom systems, including hoists, bridge cranes, gantry cranes, jib cranes, workstation cranes and ongoing crane servicing.

If you are not sure which option fits your site, contact JDN Monocrane or request a quote to discuss the right setup for your operation.
